Powder & Paste Products

Non-leafing Alpaste

Outline

In this type of paste, the aluminium flakes are uniformly dispersed in the coating film. Coating films with a characteristic gloss are achieved because the aluminium flakes reflect light through the coating film. We can offer various glosses by controlling the particle size distribution and particle shape.
These products are used in various applications such as the top coat for automobiles, plastic coatings, printing ink and PCM.

Structure

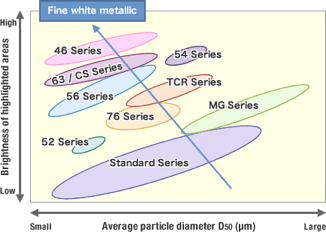

Schematic diagram of non-leafing aluminium paste color tones

Standard Series

Product name Base solvent Average particle diameter
D50(µm)
Water covering area
(cm2/g)
1950M M 54 6.000
1100M M 33 9,500
HS-2 M/N 22 10,000
1100MA M 22 14,000
1700NL M/N 18 14,500
1200M M 12 23,000
1260M-S M 9 26,000
2172 M 7 27,500
2173 M 6 29,000

MG Series

Product name Base solvent Average particle diameter
D50(µm)
Water covering area
(cm2/g)
MG600 M/N 25 10.000
MG1000 M/N 32 4,500
MG1300 M 33 3,000
54-452 M/N 37 5,000
54-497 M 62 4,000
MG2020 M 29 8,500
MG2030 M 33 5,500
MG2040 M 31 4,000

White Silver Series

Product name Base solvent Average particle diameter
D50(µm)
Water covering area
(cm2/g)
7130N M/N 21 13,500
7160N M/N 17 17,000

76 Series

Product name Base solvent Average particle diameter
D50(µm)
Water covering area
(cm2/g)
7620NS M/N 17 13,000
7640NS M/N 16 16,000
7675NS M/N 13 20,500

TCR Series

Product name Base solvent Average particle diameter
D50(µm)
Water covering area
(cm2/g)
TCR2020 M/N 23 5,500
TCR2060 M/N 16 10,500
TCR2150 M/N 11 18,000
TCR3040 M/N 17 7,000
TCR3080 M/N 13 11,500
TCR3130 M/N 11 15,500

54/56 Series

Product name Base solvent Average particle diameter
D50(µm)
Water covering area
(cm2/g)
5422NS M/N 21 9,000
5620NS M/N 18 12,000
5640NS M/N 14 17,000
5660NS M/N 9 22,500
5680NS M/N 8 26,000

63 Series

Product name Base solvent Average particle diameter
D50(µm)
Water covering area
(cm2/g)
6320NS M/N 14 15,000
6340NS M/N 12 17,000
6360NS M/N 10 19,500
6390NS M/N 7 28,000

46 Series

Product name Base solvent Average particle diameter
D50(µm)
Water covering area
(cm2/g)
4640NS M/N 11 16,500
4660NS M/N 10 21,000
4690NS M/N 7 39,000

* M: Mineral spirit, N: Aromatic hydrocarbons
